If you’re like me, you might find that working with JSON data can often feel like trying to untangle a ball of wool. Nested structures are common in JSON files and can become particularly convoluted when they contain multiple levels of nested data. In the past, I’ve spent hours creating CTEs in SQL to solve this problem, only to wind up with a complex and hyper-specialized query that often didn’t even create exactly the output I was hoping for. Thankfully, with the help of dbt, this process can be simplified. In this tutorial, we will take you through a hands-on guide to turn complex nested JSON files into accessible, flattened tables ready for analysis!

The Challenge:

Imagine you have a JSON file, sourced from an API response, that logs customer transactions. Each transaction record is dense — with nested data detailing items, service charges, discounts, and more. Your goal is to structure this data into a relational format within BigQuery — preserving the intricate details without losing the overarching context of each transaction. You could modify your python script to unnest these components into their own individual dataframes, but you’d prefer to have the progression from raw to structured data take place in a manner that is easy to audit and to trace in your Data Architecture. This is a perfect use-case for dbt.

The Solution — Step-by-Step Unnesting with dbt and BigQuery:

Step 1 — Create a Raw Data Table BigQuery: Begin by creating a new table in your database that contains the raw JSON response. Don’t worry about renaming columns or even fixing data types at this point — all of that can be handled within dbt.

Step 2— Set Up Your dbt Model: Next, create a models folder within your dbt project that you can begin working with. Within that folder, create a YAML file which you will use to tell dbt which tables you’ll need to pull in from the dataset. For this example, we’ll be working with the raw_orders table

Step 3 — Extract JSON Arrays: Using BigQuery’s JSON_EXTRACT_ARRAY function, you can now begin to extract the nested arrays within your JSON column. This step converts the JSON strings into a format that can be expanded into separate rows. Here we will be specifically unnesting the data within the ‘Items’ column:

WITH base AS (
  SELECT
    order_id,
    JSON_EXTRACT(item, '$') AS item_json
  FROM
    {{ source('your_dataset', 'raw_orders') }}
),

Step 4— Unnest the JSON Data: After unnesting the Items column, you can proceed to extract the details of each individual item. BigQuery’s JSON_EXTRACT_SCALAR function is perfect for this, as it allows us to pull out scalar values from the JSON object. Fields that contain further nested structures can be extracted as JSON strings using the JSON_EXTRACT function if you would like to maintain their nested format for further processing later.

Here’s an example of how that CTE might look:

unnested_items AS (
  SELECT
    base.order_id,
    JSON_EXTRACT_SCALAR(item, '$.item_id') AS item_id,
    JSON_EXTRACT_SCALAR(item, '$.quantity') AS quantity,
    JSON_EXTRACT_SCALAR(item, '$.price') AS individual_item_price,
    -- Keeping other nested fields as is for now
    JSON_EXTRACT(item, '$.service_charge') AS service_charge_nested,
    JSON_EXTRACT(item, '$.discount') AS discount_nested,
  FROM
    base,
    UNNEST(JSON_EXTRACT_ARRAY(base.item_json, '$')) AS item
)

SELECT * FROM unnested_items

With this structure, you have now prepared each row to represent an individual item from the original nested JSON, with its identification and transactional details neatly extracted into separate columns. Nested fields related to service charges and discounts are kept in their JSON format, which allows for additional processing as needed.

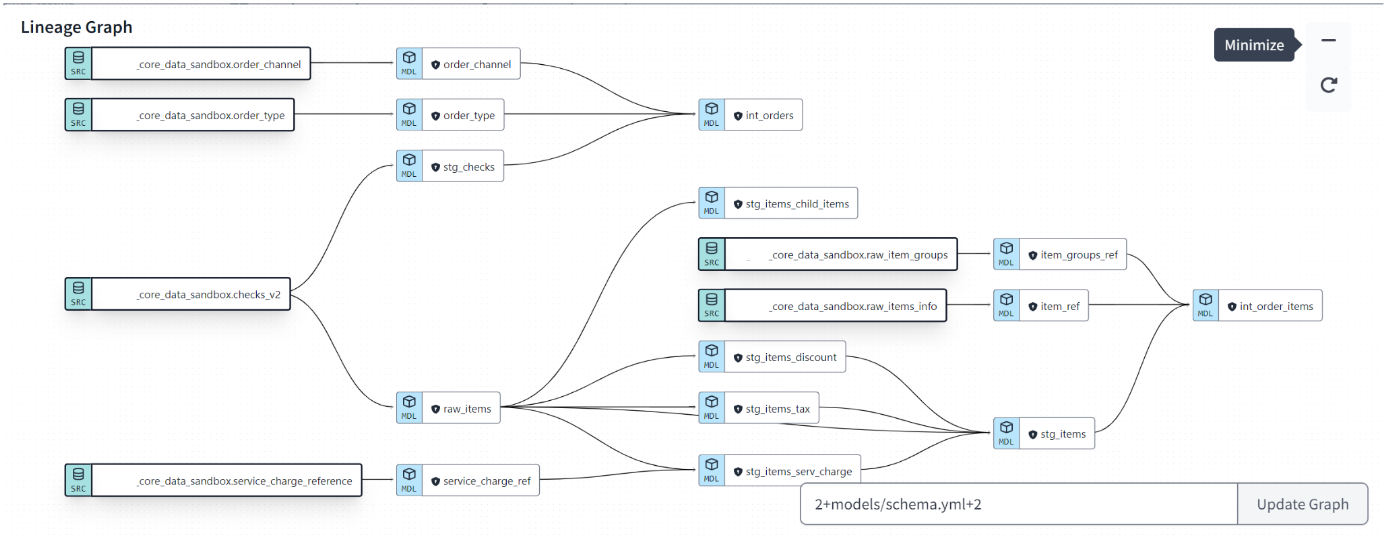

Step 5— Run Your dbt Project and Build out your DAG: After testing to ensure the above works as intended for your use case, you can execute the dbt run command to push this new table to your BigQuery instance. From there, you can unnest any additional columns into their own tables, and join those in as needed further downstream as you create the clean staging and fact order tables that every analyst needs!

Other tips to keep in mind

1. Make Sure Your Nested JSON Data is Actually in a Readable JSON Format: You might need to add a few additional lines of code when creating your dataframe (assuming you’re extracting this info from an API) to ensure that the nested JSON is actually formatted properly. If it is not, the unnesting process we walked through above won’t work
2. Be Intentional About How Far You Want the Unnesting to Go: In working with these JSON responses, you may run into instances with recursively nested child items that go many layers deep. While you can certainly untangle this thread all the way until the end, chances are it might not be entirely necessary. Do some investigation into the nature of these child items — are these additionally nested layers adding value to your analysis? Do they contain amounts that are not also summarized by the parent item, or are they redundant?
3. Brush up on your dbt documentation: If you’re new to dbt, or if you haven’t used the tool in a while take a moment to brush up on all the how-tos and best practices. This link is a great place to start!

The combination of dbt and BigQuery is a powerful toolkit for handling JSON data. By following this guide, you can transform even the most nested JSON structures into a well-organized database schema. This process not only simplifies complex data but also unlocks the potential for deeper insights and analysis.
